Infinite
Overview

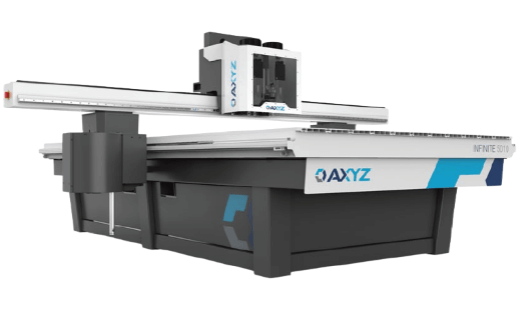

The AXYZ Infinite CNC Router & Knife system can be configured to fit your application perfectly. You can choose from a wide variety of cutting envelope sizes, gantry heights, tooling configurations, and performance options. Our Canadian factory is set up to deliver this customization without long production lead times. As well, the Infinite’s heavy-duty design includes a robust steel base and welded carriage to ensure excellent cut quality. Please contact us to learn more about the Infinite Possibilities this product can unlock for your business.
What Makes It Unique ?
A popular, highly configurable CNC router, the Infinite Series is a new machine that builds on the AXYZ Series to make it even better. It’s suitable for one-off, small batch production as well as high volume and high productivity applications.
The most configurable CNC router in the industry
Process areas to suit all sheet sizes and budgets
Versatile head and tooling options for all materials and applications
Fully customisable systems are built to order for unique business requirements
Features
Customised Configuration
A wide range of tooling and head configurations are available to meet your unique application requirements.
Router Spindles
Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Choice of Knife Tools
Various knife tools are available to process a range of flexible and semi-rigid materials.
Solid Machine Base
A rigid, welded steel frame, fitted with an aluminium deck, creates a strong structure to support the most demanding processes.
Gantry Height
Specify the most appropriate gantry clearance to accommodate your products and machining requirements.
Zoned Vacuum Deck
All Infinite machines have machined aluminium vacuum decks to maximise material hold down for quality cutting and reduced waste.
Zone Controls
Vacuum zones can be switched with manual valves or automatically by the machine controller.
SmartConsole
Full machine control at your fingertips for fast and easy machine setup in an intuitive and compact package.
Tool Length Sensors
An automatic tool length sensor which ensures accurate and consistent cut depths is fitted as standard on all AXYZ machines.
Drive Systems
The optional helical rack, pinion, and standard servo drives provides superior high speed performance delivering greater accuracy, smoother cutting and quieter running. For high-volume applications where cycle times need to be kept to a minimum, the powerful servo drives can increase productivity.
All Z axes feature a precision ballscrew drive as standard.
Specifications
| STANDARD PROCESS AREAS | |
| Infinite 4000 | 60″ Width. Lengths from 48″ to 50ft |
| Infinite 5000 | 72″ Width. Lengths from 120″ to 50ft |
| Infinite 6000 | 85″ Width. Lengths from 120″ to 50ft |
| Infinite 8000 | 103″ Width. Lengths from 120″ to 50ft |
| INFINITE 10,000 | 128″ Width. Lengths from 120″ to 50ft |
| OPTIONAL ADDITIONAL LENGTH | 24″ Increments |
| STANDARD GANTRY CLEARANCE | 6″ |
| OPTIONAL GANTRY CLEARANCE | 8”, 10”, 12”, 14”, 16, 18” |
| DRIVE SYSTEM | X, Y – Rack and Pinion, Z – Ballscrew |
| TYPICAL POSITIONING SPEED | 25m/min – 50m/min |
| CONTROL SYSTEM | AXYZ A2MC Controller 7 Segment motion profile FPGA processor for high speed complex calculations Dedicated true NC control – G and M codes Network connection Large solid state onboard memory AXYZ SmartConsole |
| Power Requirements | 208-230V 3 Phase / 440-460V 3 Phase |
