Innovator
Overview
INDUSTRIAL PRECISION. COMPACT DESIGN. FULL-SCALE CAPABILITY

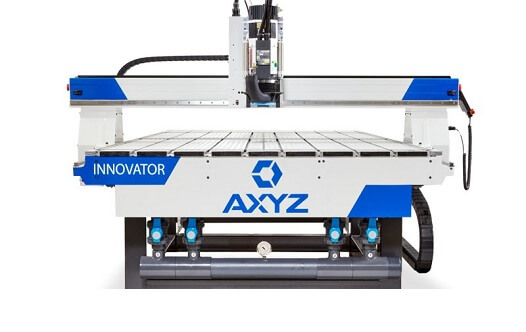

The all new AXYZ Innovator builds on the legacy of AXYZ CNC router machines manufactured to process the widest range of materials. Optimized for prototype, signs and graphics, woodworking shops, and educational institutions, the Innovator is equipped with powerful integrated servo motors, an optional tool changer, and standard helical rack. Choose from two standard sizes that fit the most common sheets sized for this market.
What Makes It Unique ?
Compact in size, the Innovator is powerful enough to cut Aluminum, Plastics and Hardwoods creating higher quality finishes and short lead times.
Industrial cutting capabilities
Reliable service and parts support
Automated tool changer functionality
Compact footprint with high-quality components
Educational curriculum
Features
Single Head Configuration :- The Innovator includes a single carriage with a Z axis driven by precision ballscrew for accurate depth control and full 3D processing. Tooling can either be a routing spindle or knife tool which can be interchanged to offer great versatility.
Solid Machine Base :- A rigid, welded steel frame with cast gantry legs, fitted with an aluminum deck, creates a strong structure to support the most demanding processes.
Drive Systems :- Helical Rack and pinion drive system on X and Y axis. Precision ballscrew drive with preloaded ballnut and fully enclosed ball re-circulation system on Z axis.
Gantry Height :- A 6″ Z-Axis gantry clearance comes as standard with the option of 7.5″ to accommodate your products and machining requirements.
SmartConsole :- Full machine control at your fingertips for fast and easy machine setup in an intuitive and compact package.
Control :- The A2MC delivers much smoother and faster motion based on S-Curve (Seven Segment Velocity) trajectories. This motion profile reduces the bounce and vibration created from sudden acceleration or deceleration in many other control systems. It is also fully NC code compatible so it will work with virtually any known CAM package including Vectric, Artcam, Type 3, Enroute, Mastercam, Alphacam and more.
Zone Controls :- Vacuum zones can be switched with manual valves.
Tool Length Sensor :- An automatic tool length sensor which ensures accurate and consistent cut depths is fitted as standard on all AXYZ machines.
Specifications
| STANDARD PROCESSING AREAS | |
| Innovator | 49″ x 53″ (1244mm x 1346mm) |
| Innovator | 96″ x 60″ (2438mm x 1524mm) |
| STANDARD GANTRY CLEARANCE / Z STROKE | 6″ (150mm) / 7.5″ (190mm) |
| DRIVE SYSTEM | X & Y – Helical Rack and Pinion Z – Axis Ballscrew |
| TRAVERSING SPEED | 1000 IPM |
| CONTROL SYSTEM | AXYZ A2MC machine controller |
| POWER REQUIREMENTS | 208-230V 3 Phase / 440-460V 3 Phase (Single Phase Optional) |
